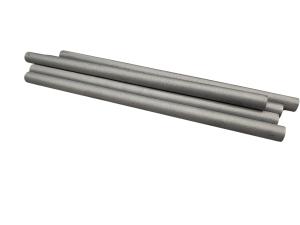

Product Description:
With an Hrv of 91.2 and a flexural strength of 2800-4500MPa, our cemented carbide rods can withstand extreme pressure and provide excellent performance in various applications. These rods are available in customized dimensions, making them suitable for a wide range of operations.
Our cemented carbide rods come in diameters ranging from 2mm to 50mm, making them versatile and ideal for different applications. These rods are unground and unpolished, ensuring that they maintain their strength and durability even in the most challenging environments.
Our cemented carbide rods are manufactured using high-quality materials and undergo stringent quality checks to ensure that they meet our customers' expectations. Our team of experts ensures that our rods are of the highest quality and can withstand wear and tear for a long time.
Whether you need to cut, drill, mill, or grind, our cemented carbide rods are the perfect solution for you. They are designed to deliver optimal performance and provide excellent results, making them a must-have for all your heavy-duty operations.
Order now and experience the high wear resistance and high strength of our Cemented Carbide Rods.
Features:
- Product Name: Cemented Carbide Rod
- Flexural Strength: 2800-4500MPa
- Diameter: 2-50mm
- Application: Cutting/ Drilling/ Milling/ Grinding
- Standard: ISO/GB/ANSI/DIN/JIS
- Density: 14.5-15.9 G/cm3
- Tungsten carbide raw material
- High hardness
- High wear resistance
Technical Parameters:
| Dimension | Customized |
| Hrv | 91.2 |
| Standard | ISO/GB/ANSI/DIN/JIS |
| Length | 50-330mm |
| Diameter | 2-50mm |
| Application | Cutting/Drilling/Milling/Grinding |
| Fracture Toughness | 7-10 MPa·m1/2 |
| Density | 14.5-15.9 G/cm3 |
| Features | High Wear Resistance/High Hardness/High Strength/Corrosion Resistance |
| Hardness | HRA 89-93 |
Extrusion molding, Tungsten carbide rods
| Xincheng (Xiamen) Cemented Carbide Co., Ltd. |
| number | CO
±0.5% |
Densityg/cm3 |
um |
HRA |
TRSN/mm2 | Main purpose or application |
| CF12 | 12 | 14.20 | 0.7 | 91.80 | 4000 | Cutting tools such as drills and reamers for steel and cast iron, as well as tungsten carbide punch rods. |
| CF25 | 12 | 14.10 | 0.4 | 92.10 | 4000 |
| XG7 | 15 | 13.85 | 1 | 89.00 | 4100 |
| CF312 | 12 | 14.15 | 0.5 | 92.60 | 4200 |
| CF506 | 5.5 | 14.90 | 0.5 | 93.00 | 3200 |
| CF406 | 6 | 14.90 | 0.4 | 94.00 | 3200 |
| CF412 | 12.5 | 14.31 | 0.4 | 92.10 | 4300 |
| CF503 | 3 | 15.00 | 0.8 | 93.00 | 3200 |
| CF09 | 9 | 14.50 | 0.2 | 93.80 | 3800 |
Applications: The cemented carbide rods are produced using extrusion molding, ensuring that the products are uniform in shape and size. The standard lengths available are between 50 to 330mm, and customized dimensions are also available based on customer requirements.
These cemented carbide rods are highly resistant to wear and corrosion, making them ideal for use in various industries such as manufacturing, construction, mining, and metalworking. They can be used for drilling, cutting, and milling applications, and can withstand high temperatures and pressures.
The product conforms to international standards such as ISO, GB, ANSI, DIN, and JIS, ensuring that the quality is consistent and reliable. With a monthly supply of 50 tons, customers can rely on Xincheng to provide the required quantity of cemented carbide rods.
In summary, Xincheng's cemented carbide rod product is an excellent choice due to its high wear resistance, high hardness, high strength, and corrosion resistance. It is made of tungsten carbide raw material using extrusion molding and is available in standard and customized dimensions. The product conforms to international standards, making it ideal for use in various industries such as manufacturing, construction, mining, and metalworking. With a monthly supply of 50 tons, customers can rely on Xincheng for their cemented carbide rod needs.
Customization:
Our customization services for the cemented carbide rod product include the production of blank rods, which can be further processed according to your specific requirements. Additionally, we offer corrosion resistance services to ensure that the product can withstand harsh conditions. We have a supply ability of 50 tons per month, ensuring that your orders are fulfilled promptly and efficiently.
Support and Services:
Our cemented carbide rods are made from high-quality materials and undergo rigorous quality control processes to ensure consistent performance. We offer a range of technical support and services to help you get the most out of your product:
- Application support to help you choose the right grade and optimize your process
- Technical consulting to troubleshoot any issues you may encounter
- Custom tool design and engineering services to meet your specific requirements
- Training and education to help you and your team stay up-to-date on the latest technologies and best practices
